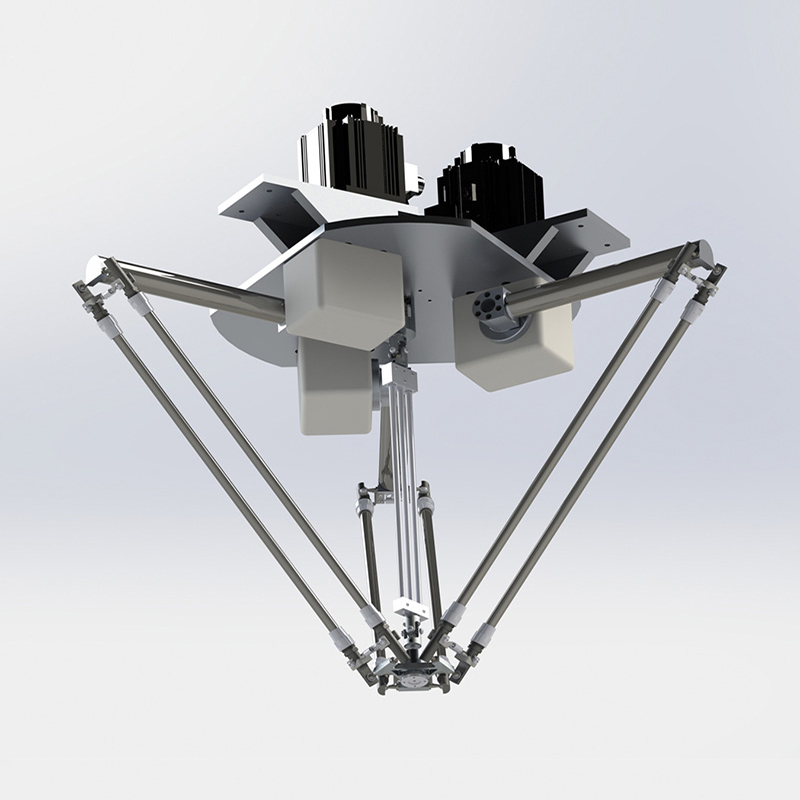

SN8020

高速型組裝機器人 第四代


  • MIT台灣製造, 整合服務零時差
  • 全系列採用高速網路(Ethercat)
  • IP67結構設計(防塵、防撥水)

型號 SN 8020
類型 四軸Delta機械手臂
Number of axis 3 Translational axes + 1 Optional
Working Range Horizontal stroke - 800mm
Vertical stroke - 200mm
Cycle time* 0.35s
Weight 40kg
Pated Payload 1kg
Repeatability ±0.1mm
Angular Repeatability ±1°
Speed 10m/s
Acceleration Speed 10G
Rated Current 15A
Rated Voltage 220V
Controller OMRON NJ501-1300
Installation Floor, ceiling
  • *Cycle time is based on a Payload 0.1 kg, reciprocating movement over a25/305/25 (mm).
    Actual cycle time will depend on operating conditions.
